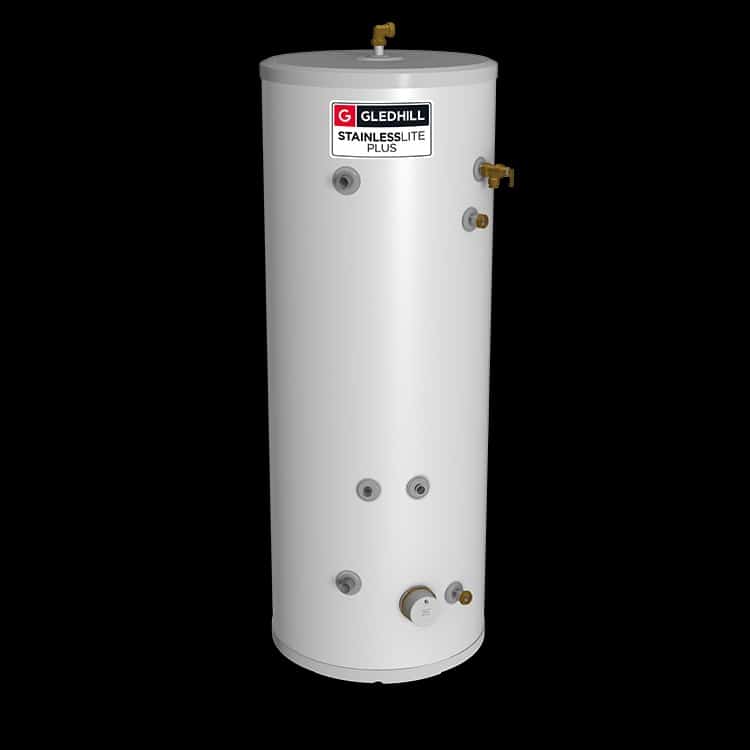

Gledhill StainlessLite Plus Heat Pump Solar

Gledhill StainlessLite Plus Heat Pump Solar

Product Features

•Available Sizes 180 Litre, 210 Litre, 250 Litre, 300 Litre, 400 Litre
•Designed for use with either air source or ground source heat pumps
•High efficiency corrugated coil maximises heat transfer to the cylinder of water
•3kW incoloy immersion heater for emergency back-up
•90° elbow and drain valve supplied as standard

SKU: StainlessLite-Plus-Heat-Pump-Solar Categories: , ,

Gledhill have produced an unvented stainless steel unit specifically for heat pump applications providing mains pressure domestic hot water. Utilising the well established Gledhill StainlessLite Plus unvented hot water cylinder, this product has been developed to maximise the lower temperatures available from the heat pump.

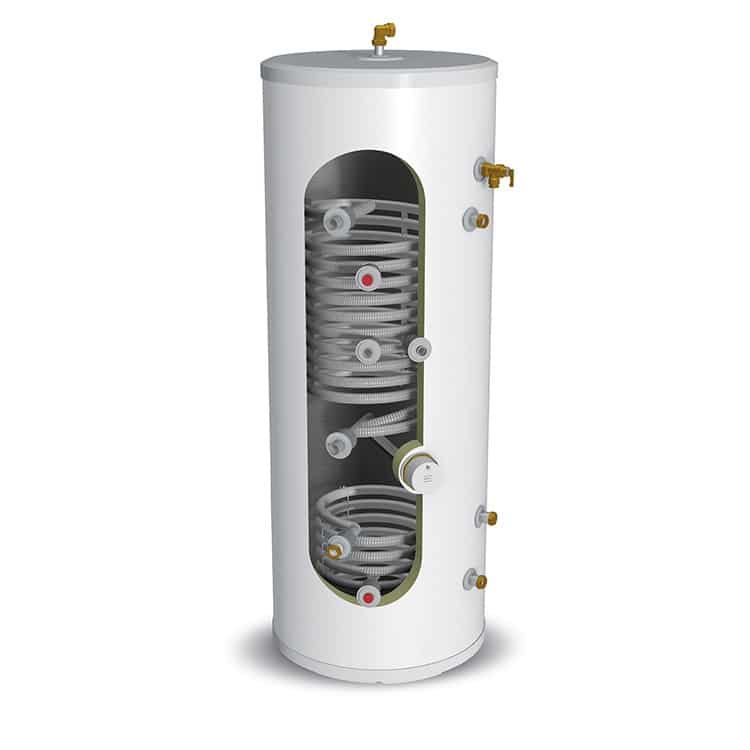

The heat exchanger is a totally new design. It consists of a multi-pass corrugated stainless steel tube in parallel to reduce the pressure loss whilst maximising the heat exchange. Many medium to large heat pumps need heat exchangers in the store that will cope with the higher flow rates associated with primary temperatures that are typically 50 or 60 degrees celsius.

All the usual features of the Gledhill StainlessLite Plus are maintained together with all the necessary controls and expansion devices included.

Due to the fact that many heat pumps will not raise the stored water temperature to 60 degrees celsius, which is necessary to prevent the growth of legionella, the StainlessLite Plus HP model is supplied with an immersion heater tapping and a thermostat pocket.

It is recommended that a thermostat is fitted which brings the immersion heater on at a temperature just below the heat pump maximum and switches off at 60 or 65 degrees celsius. In this way the use of direct electricity is minimised and most of the water heating is achieved through the heat pump.
