As one of Europe’s leading names in heating technology, MYSON FLOORTEC underfloor heating is at the forefront of the underfloor revolution. In addition to their manufacturing and technical expertise, they can provide full planning, design and supply services to help you achieve your perfect home.

Mission: With strong values, such as trust, openness and honesty we aim to provide total heating solutions for an ecological world.

Vision: As part of Europe’s biggest manufacturer of heating solutions, we want to continue to use our strengths to grow in new and related market segments.

MYSON Underfloor Heating Options:

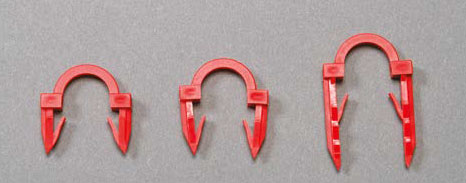

Tacker

MYSON FLOORTEC underfloor heating Tackernails are exclusive to MYSON, and are the strongest nail solution available. The Tackernail system is suitable for solid floor types. The Tackernail is made entirely out of plastic so there is no clogging from sticking tape. It also has more barbs, so there is no worry about nails lifting. The pipe is positioned in place and the Tackernail is fixed over the pipe using a MYSON FLOORTEC Tackertool.

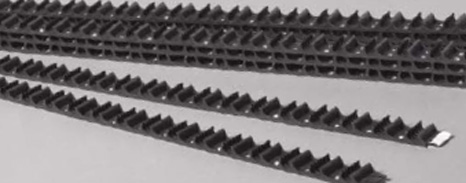

Cliprail

Cliprail systems are for use on solid fl oor types. The Cliprails are designed to attach the MYSON FLOORTEC underfloor heating pipework to fl oor insulation (supplied by others) using the adhesive and Cliprail pins supplied. The Cliprail consists of a robust, u-shaped channel that is 1m in length, with fi xing positions every 50mm. This is a fast and cost effective method of installing underfloor heating and is suitable for both traditional and liquid screeds. The pipe is installed in a serpentine laying pattern.

Please note: No floor insulation is supplied with this fixing system.

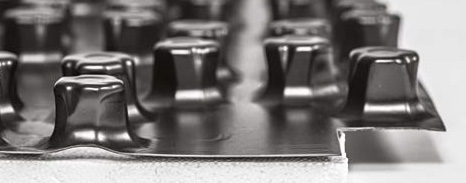

Preformed Plate

Preformed Plate is a fast and effective fixing system and is ideal for single person installations. It is suitable for solid floor types. It is a castellated fixing system that comprises of an expanded 11mm polystyrene insulation base with raised burls that are designed to firmly grip the MYSON FLOORTEC underfloor heating pipe. The pipe is fixed easily into the desired pattern by lightly pressing with your foot. It is suitable for 14 – 17mm pipework and is very flexible, allowing both spiral and serpentine laying patterns.

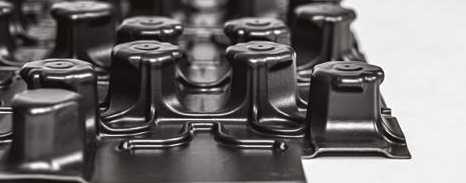

Naked Preformed Plate

Naked Preformed Plate is a fast and effective fixing system and is ideal for single person installations. It is suitable for solid floor types. It excludes the 11mm polystyrene insulation that comes with Preformed Plate and is a cost effective alternative. It is more streamlined and therefore ideal for areas where space is critical. It is a castellated fixing system with raised burls that are designed to firmly grip the MYSON FLOORTEC underfloor heating pipe. The pipe is fixed easily into the desired pattern by lightly pressing with your foot. It is suitable for 14 – 17mm pipework and is very flexible, allowing both spiral and serpentine laying patterns.



Tacker

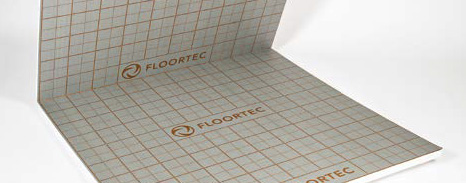

Tacker fixing system is suitable for solid floor types and incorporates all the advantages of our Tackernail fixing system. It is supplied with 25 or 50mm insulation with a webbing foil bonded to the surface. This foil acts as a protective layer, but also helps to assist the positioning of the pipework with a handy 50mm grid marked on. The pipe is then positioned in place using our exclusive Tackernails and Tackertool. It is also very flexible allowing both spiral and serpentine laying patterns.

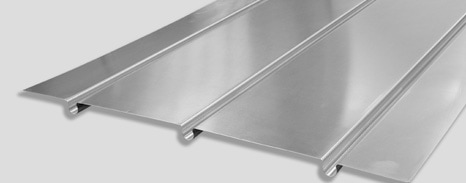

Plated

Suspended fl oor systems include both joisted floors with conventional joists supported on end walls of sleeper walls, as well as solid floors with battens fixed to the floor. The underfloor heating system consists of aluminium diffusion plates fitted between joists or battens. These are grooved to accept the underfloor heating pipework. The aluminium plate is used for its excellent thermal conduction as well as its low weight. It is suitable for 16 and 17mm pipework.

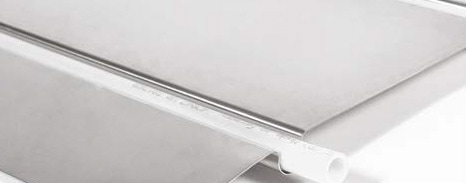

Floating Floor

The MYSON FLOORTEC floating floor system has been uniquely developed to meet the increasing demand for this type of flooring structure. Floating floor systems have a low thermal mass and consequently have a swift response time to changes in temperature. Floating floors also reduce the overall load on the building, minimising the weight of the floor compared to the other floor systems. It is suitable for 16mm multi-layer pipework only. The grooves are designed to accept MYSON FLOORTEC preformed aluminium diffusion plates, which spread the heat laterally across the floor from the heating pipework.

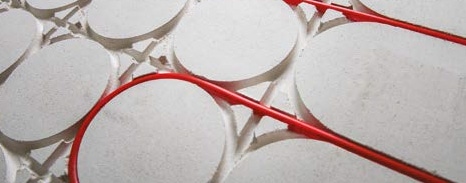

Microboard

MICROBOARD, from MYSON FLOORTEC, is a retrofit, low profile underfloor heating system. It can be installed over an existing floor, or be used as part of a new build project, making it our most flexible system yet. At only 18mm in depth it allows for underfloor heating to be easily installed into older and existing properties without the need for expensive and disruptive excavation. It is available in two panel types, straight and return, and our 10mm PEXcellent5 pipe is easily laid into the panels.

To find out more about other MYSON underfloor heating options, please visit your local MPH branch where a member of staff will be happy to help.
